Four Panel LED FX Facade with Tour Case

Approx. Overall Product Dimensions (Edge to Edge): 48.5" W x 12.75" D x 34" H
UPC: 807822042900
EAN: 8078220429002

Eye-catching, extraordinary, and exceptionally stimulating. DJs it's time to raise the bar! Enhance your performance and special event setup display with the HLFXF4P1 Headliner FX Facade. You can literally run your whole light show with just the Headline FX on stage. Set the brightness, speed, sound sensitivity, and mode of 100 effects patterns from the pre-programmed SD card through the plug and play controller, or for maximum control, an 8 channel minimum DMX controller (not included). Warning, using this product to augment your musical performance may cause members of your audience to have uncontrollable urges to dance and party!

Features and Specifications

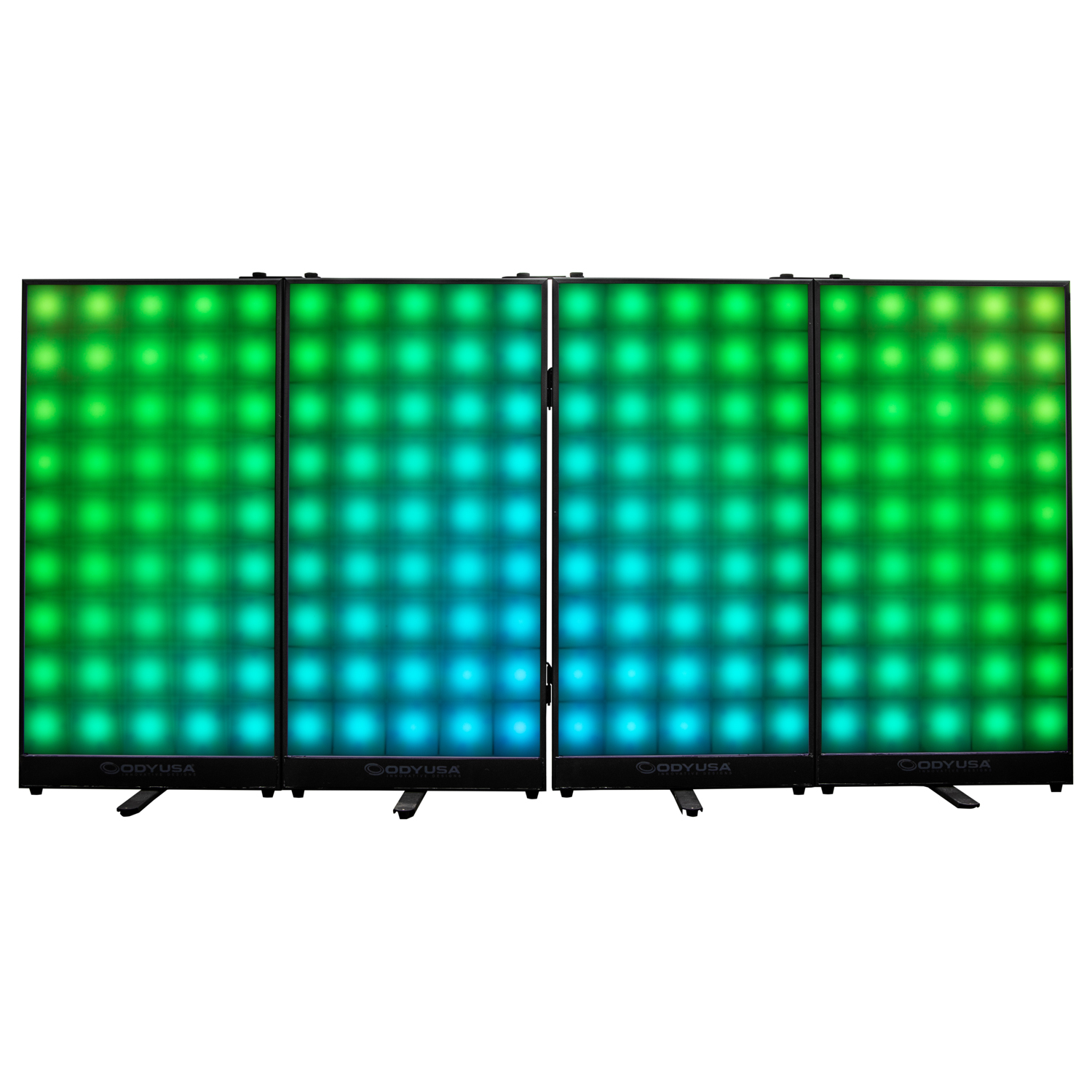

•Aluminum Dual Panel Frame Sections with Acrylic Face Panels
- Each Dual Panel Section Securely Attaches to Each Other with Angle Adjustable Braces
- Each Individual Panel Is 22.5"W x 44.5"H, 2" Thick

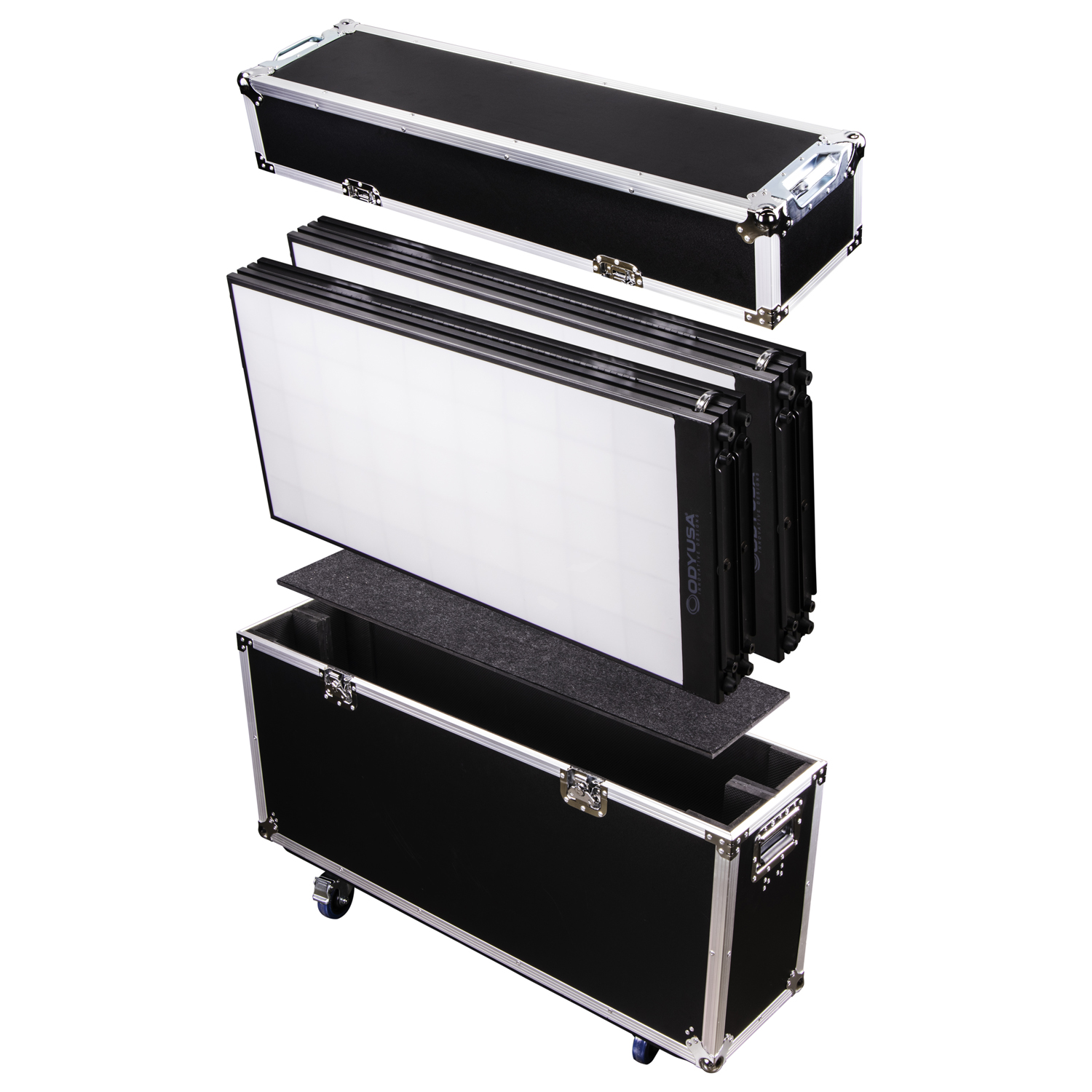

•Each Dual Panel Section Folds Flat for Storage and Transport
- Each Dual Panel Section Folded Dimensions are 22.5" x 44.5"H x 4.25" Each
- Bottom Rubber Feet and Panel Support Extensions
•Power Consumption: 450 W
•Input Voltage: AC 100-240 V, 50-60 Hz
•Control Modes: DMX512 (6 channels), Sound activated, Auto
•5050 SMD, 3 in 1 per unit: total 180 modules
•Controller, SD Card With Preprogrammed Effects, Power Supply, Cables, and Bag Included
- SD Card Card Includes 10 FX Folders, Each Folder With 10 Preprogrammed Effects
- Controller is 8.5" x 6" x 1.75", 2 lbs.
•For Maximum Control of the Effects Use A Minimum 8 Channel DMX Controller (not included)

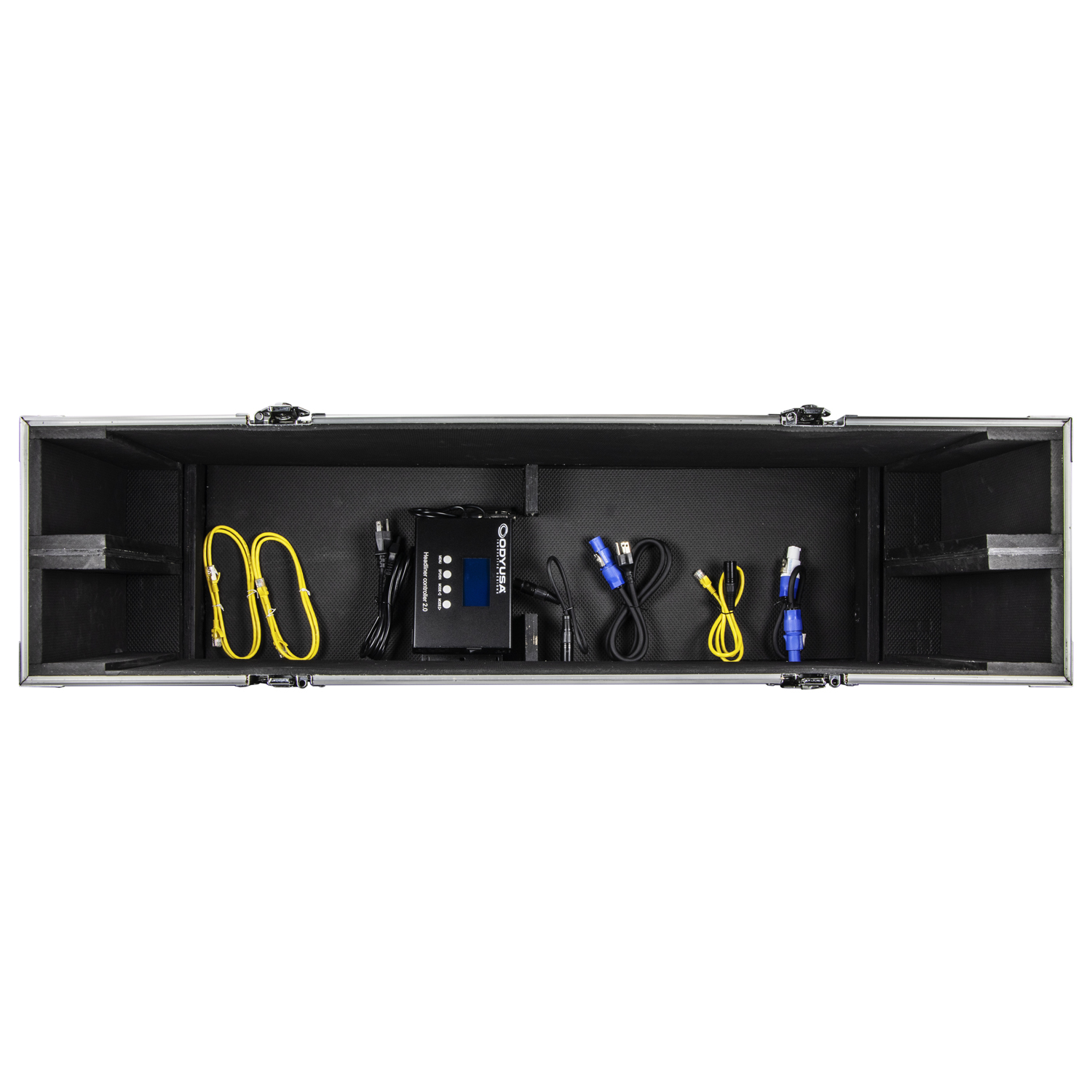

•Tour Case with Bottom Storage Compartment *(Included for Free for a Limited Time Only) Caster assembly required.
- Tour Case Storage Compartment has Two 18.5" x 10.75", 2.5"H Sections
•Total Weight with Tour Case is 139 lbs.
•Tour Case Approximate External Dimensions & Weight: 48.5" x 12.75" x 34.25H", 75 lbs.
- Tour Case has 3" Caster Wheels
- Facade software runs on Windows system only
•Patent Pending

*** Props used in the product pictures or the interior of the soft cases/bags such as DJ controller, DJ mixer, different parts of the DJ podium, mixing console, accessories, speaker, TV monitor, cable, laptop, computer, microphone, headphones, sneeze guard, slipmat, turntable, turntable needle, etc are not included with the product. ***
