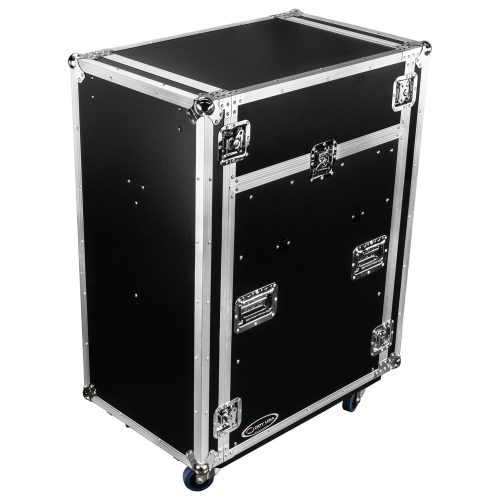

Deluxe 14U Top Slanted 16U Bottom Vertical Pro Combo Rack with Two Side Tables and Casters

Approx. Overall Product Dimensions (Edge to Edge): 21.5" W x 35" D x 47.25" H
Vertical Rack Spaces: 16
Slanted Rack Spaces: 14
UPC: 807822046060
EAN: 8078220460609
Case Constructs:
  • Silver Hardware
Case Features:
  • Casters

Our Combo Racks give you the best of both worlds. Mount mixers and controllers on top for convenient access and all other essentials below. Each features heavy-duty rubber feet (non-wheeled versions), spring-loaded handles, and recessed hardware. "W" versions feature heavy-duty casters on a dolly plate (2 with sure stop brakes) while "DLX" versions feature lids that double as side mount workstation tables.

Features and Specifications

• 3/8" Ply Construction
• Top Slanted Rack: 14 spaces
• Rear of the Top Slanted Rails is 4" Higher than the Front
• Bottom Front Vertical Rack: 16 spaces
• Bottom Rear Vertical Rack: 14 spaces
• Rail to Rail Depth is 25.25"
• Rail to Cover Depth is 26.25"
• Heavy-Duty Ball Corners
• Recessed Latches and Spring-Loaded Handles
• Front and Rear Logo Panels are Removable
• 3.5" Heavy-Duty Casters(2 w/brakes)*Caster Assembly is Required
• Removable Top Lid Has an Interior Height of 8.75"

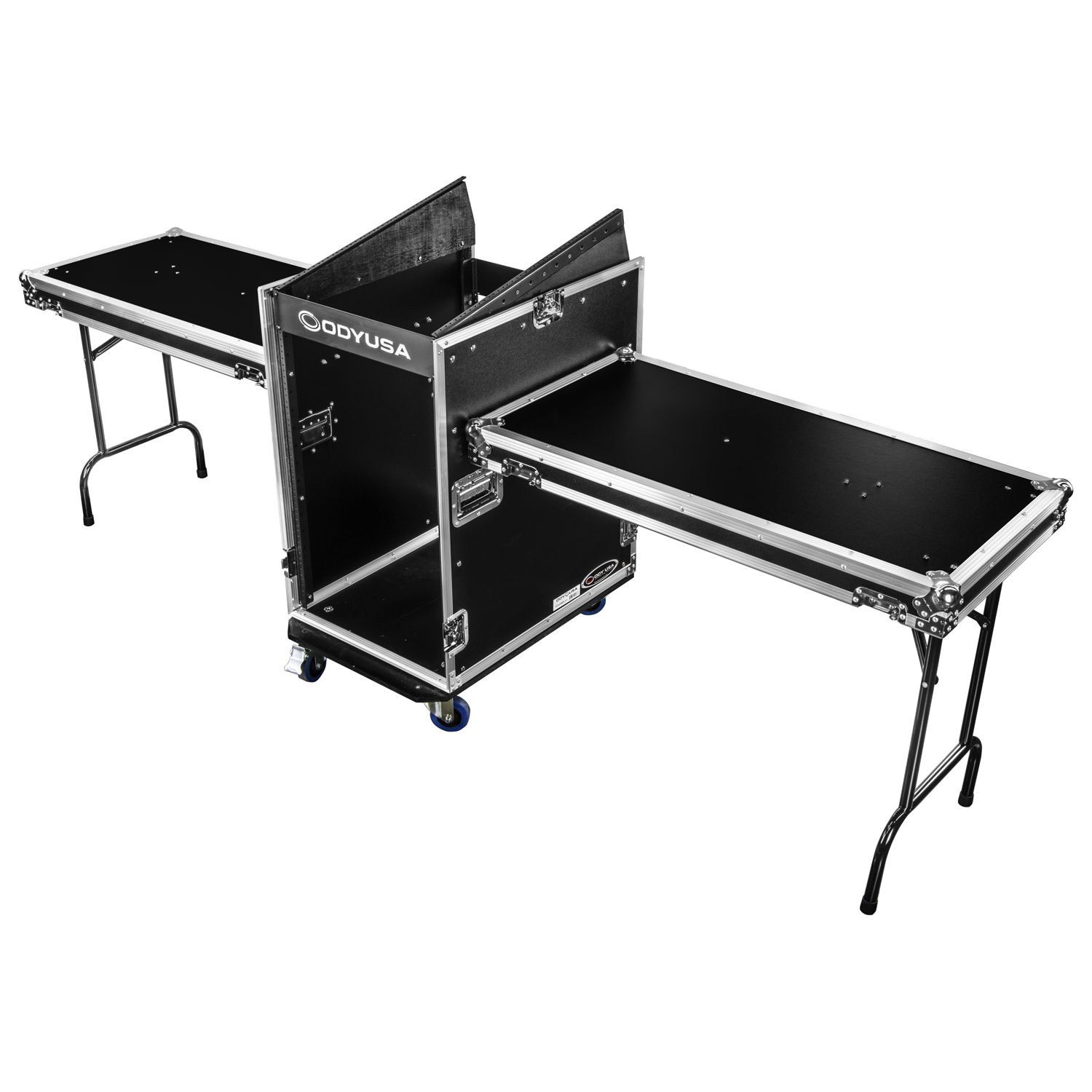

• Removable Front and Rear Covers That Convert Into Side Table Workstations
• Front and Rear Covers Have a 3" Depth Interior (excluding folded table legs)
• Surface of Each Table is 41.75" x 20.75"
• Tables May Be Mounted on Either Side (*Weight Capacity: 200 lbs. Evenly Distributed)
• Table Height is 30" With a Bottom Height Clearance of 26.5"

*** Props used in the product pictures or the interior of the soft cases/bags such as DJ controller, DJ mixer, different parts of the DJ podium, mixing console, accessories, speaker, TV monitor, cable, laptop, computer, microphone, headphones, sneeze guard, slipmat, turntable, turntable needle, etc are not included with the product. ***
